Rauvipex Uno

Rehau Rauvipex Uno Pipe 32/125 SDR11

Name: RAUVIPEX UNO 32mm Pre-Insulated Single Pipe | Underground Heating
SKU: 75035
Price: 29.72 GBP
Availability: BackOrder

Original price was: £67.93£56.61.Current price is: £29.72£24.77. £29.72£24.77 inc VAT Incl. VATExcl. VAT

Got a large project? Get in touch to discuss your requirements and project terms

Product Code: 441005

Enquire for lead time

Description

RAUVIPEX UNO 32mm – 441005

RAUVIPEX UNO 32mm is a pre-insulated single pipe designed for underground heating applications where a single flow or return run is required. It is commonly used in buried heating pipework for district heating systems, biomass boiler installations, and heat networks connecting multiple buildings.

The pipe can be supplied in continuous lengths, allowing installation with fewer joints compared to segmented pipe systems. This can simplify installation and reduce the number of connection points along the pipe run. The outer casing is designed for buried conditions, while the insulation helps limit heat loss over longer underground routes.

The 32 mm size is typically selected for small to medium underground heating runs where moderate flow rates are required. Typical applications include pipework between energy centres, plant rooms, and residential or commercial buildings.

RAUVIPEX UNO 32mm is compatible with Rehau approved jointing and connection systems and is commonly specified where reliable single-run underground heating pipework is required with limited access for ongoing maintenance.

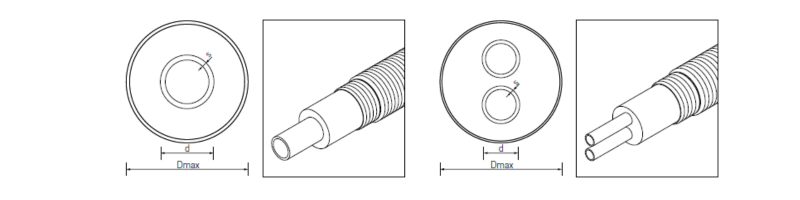

RAUVIPEX UNO and DUO district heating pipe dimension diagram showing d, s, di and Dmax

Type	d (mm)	s (mm)	di (mm)	Dmax (mm)	U-value W/(mK)	Volume (l/m)	2.4m x 1.2m Standard coil (m)	2.8m x 1.6m Special coil (m)	Weight (kg/m)
UNO 25/100	25	2.3	20.4	100	0.095	0.33	325	–	1.6
UNO 25/125	25	2.3	20.4	125	0.079	0.33	215	–	2.0
UNO 32/100	32	2.9	26.2	100	0.116	0.54	325	–	1.5
UNO 32/125	32	2.9	26.2	125	0.093	0.54	215	–	2.1
UNO 40/100	40	3.7	32.6	100	0.145	0.84	325	–	1.6
UNO 40/125	40	3.7	32.6	125	0.109	0.84	215	–	2.2
UNO 50/125	50	4.6	40.8	125	0.144	1.31	215	–	2.4
UNO 63/150	63	5.8	51.4	150	0.151	2.08	165	305	3.4
UNO 75/175	75	6.8	61.4	175	0.155	2.96	110	210	5.7
UNO 90/175	90	8.2	73.6	175	0.199	4.25	110	210	5.7
UNO 110/175	110	10.0	90.0	175	0.287	6.36	110	210	5.7
UNO 110/200	110	10.0	90.0	200	0.199	6.36	105	140	7.2
UNO 125/200	125	11.4	102.2	200	0.286	8.20	105	140	7.5
UNO 140/225	140	12.7	114.6	225	0.285	10.32	90	120	9.3
DUO 20 + 20/125	20	1.9	16.2	125	0.111	0.21	215	–	2.4
DUO 25 + 25/125	25	2.3	20.4	125	0.134	0.33	215	–	2.4
DUO 32 + 32/125	32	2.9	26.2	125	0.176	0.54	215	–	2.3
DUO 40 + 40/150	40	3.7	32.6	150	0.200	1.31	165	305	3.3
DUO 50 + 50/175	50	4.6	40.8	175	0.181	2.07	110	210	5.7
DUO 63 + 63/200	63	5.8	51.4	200	0.219	2.07	105	140	7.4
DUO 75 + 75/225	75	6.8	61.4	225	0.253	2.96	90	120	9.1
